| 3 Rollers For Solid Bar |
| MODELS |
TR01-3T |
TR01-20 |
TR01-30D |
| SPECIFICATIONS |
|
|
|
| Thread Diameter (mm) |
0.8 ~ 12 |
5 ~ 22 |
6 ~ 40 |
| Pitch (P) |
0.4 ~ 1.5 |
0.75 ~ 2.5 |
0.75 ~ 3.0 |
| Maximum length of thread (mm) |
28 |
48 |
150 |
| Rotary die speed (rpm) |
40 |
40 |
40 |
| Maximum diameter or rotary dies (mm) |
100 |
120 |
150 |
| Bore diameter of rotary dies (mm) |
50.5 |
40 |
54 |
| Width of rotary dies (mm) |
30 |
50 |
150 |
| Maximum centre distance of die-spindled (mm) |
130 |
140 |
187 |
| Minimum centre distance of die-spindled (mm) |
90 |
100 |
140 |
| Output (pcs/min) |
20 ~ 40 |
9 ~ 30 |
7 ~ 20 |
| Height from table surface to die center (mm) |
85 |
1 18 |
130 |
| Motor (HP)3 phase, A.C. |
1 |
3 |
7.5 |
| Machine dimension(mm) |
800×600×750 |
1090×740×1070 |
1220x810x1120 |
| Packing dimension(mm) |
940×700×910 |
1245×850×1220 |
1365x925x1295 |
| N.W./G.W. (kgs) |
300 / 395 |
970 / 1130 |
1300 / 1480 |

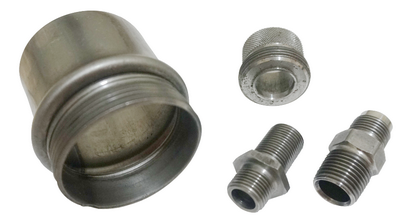

TBT offers hydraulic and cam-driven type thread rolling machines. Hydraulic type machine is from light duty 4 tons to heavy duty 55 tons, working diameter from 2mm and up to 100mm. Application of our thread rolling machine is to make fastener parts such as bolt, screw, stud and also in construction field such as Tie Rod, scaffolding pipe…etc. Both solid bar and pipe material can be rolled on our machines and we also can design auto-feeding system according to your needs. Just send your demand to us so that we can provide you the most suitable model for you.
