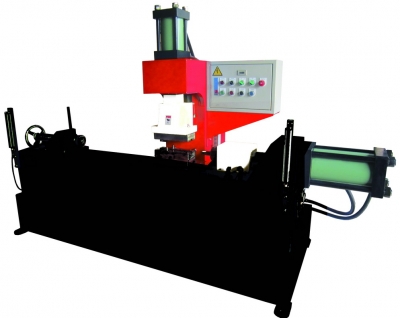

| Reducing Machine |
| MODELS |
HJ-380A1 |
HJ-600A1 |
HJ-800A1 |
HJ-1000A1 |
HJ-1300A1 |
| SPECIFICATIONS |
|
|
|
|
|
Max. bending capability
(O.D x W.T.) |
38 x 1.8 |
60 x 3.0 |
76 x 3.0 |
101 x 3.0 |
125 x 3.0 |
| Stroke (mm) |
150 |
180 |
180 |
200 |
250 |
| Speed (sec) |
3 |
4 |
5 |
7 |
8 |
| Length (mm) |
1500 |
1800 |
2000 |
2500 |
2800 |
| Motor (HP) |
5HP |
7.5HP |
10HP |
15HP |
20HP |
| Machine dimension(mm) |
2200 x 400x1100 |
2500 x 450x1100 |
2500 x 480x1100 |
3000 x 500x 1100
|
3000 x 550x 1100
|
| N.W. (kgs) |
800 |
1100 |
1500 |
1800 |
2500 |

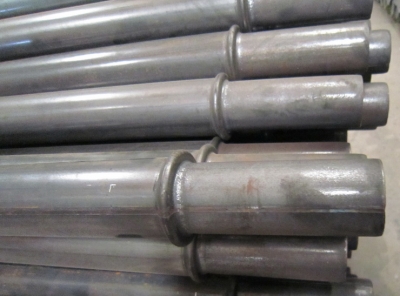

1. Tube End Forming machine can reduce or expand pipe outside diameters and also no problem to extrude lip as photos shown. For detail specifications, please contact us.
2. This tube taper forming machine is suitable for bicycle, furniture and sporting goods. For detail specifications, please contact us.
3. The sealing machine is design to seal tube end in flat or round shape, degree can be adjusted easily, and sealed with or without hole. For detail specifications, please contact us.
