| MODELS |
TBT01-SS1 |
TBT01-TT1 |
TBT01-ST3 |
TBT01-ST5 |
| |
|
|
|
|

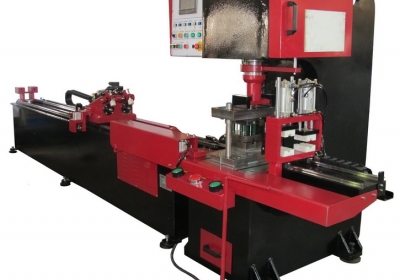

| Types of machine |
Single Cylinder Punching Machine |
Double Cylinder Punching Machine |
One-Die Three-Blow Punching Machine |
One-Die Five-Blow Punching Machine |
| SPECIFICATIONS |
|
|
|
|
| OD of Round Tube |
Ø25 ~ Ø140mm |
Ø25 ~ Ø140mm |
Ø25 ~ Ø75mm |
Ø25 ~ Ø75mm |
| Square Tube |
25*140mm |
25*140mm |
25*100mm |
25*100mm |
| Rectangular Tube |
25*140mm |
25*140mm |
25*100mm |
25*100mm |
| Tube Length |
300 - 3000mm |
300 - 3000mm |
300 - 3000mm |
300 - 3000mm |
| Tube Quantity |
1 |
2 |
1 |
1 |
| Punch-Pin |
1 |
2 |
3 |
5 |
| Punching Cylinder Force |
30MT |
30MT *2 |
17 MT *3 |
17 MT *3 |
| Precision |
±0.1 |
±0.1 |
±0.1 |
±0.1 |
| Punching Speed |
1hole for 2~3 seconds |
1hole for 2~3 seconds |
1hole for 2~3 seconds |
1hole for 2~3 seconds |
| Punching Type(through) |
25 ~ 100 |
25 ~ 100 |
None |
None |
| Punching Type(non- through) |
25 ~ 140 |
25 ~ 140 |
25 ~ 100 |
25 ~ 100 |
| Memory |
99 sets |
99 sets |
99 sets |
99 sets |
| Custom-designed Specification |
As Requested |
As Requested |
As Requested |
As Requested |
| Length of the work piece |
As Requested |
As Requested |
As Requested |
As Requested |
| Machine dimension(mm) |
4750 x 1200 x 1900 |
4750 x 1600 x 1900 |
4750 x 1200 x 1900 |
4300 x 1600 x 1800 |
| N.W. (kgs) |
3500 |
4800 |
3800 |
3800 |
| |
|
|
|
|

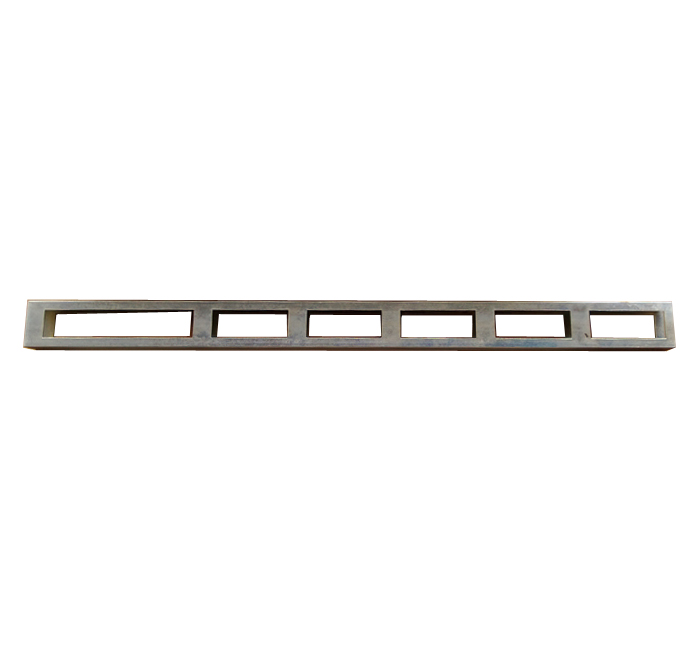

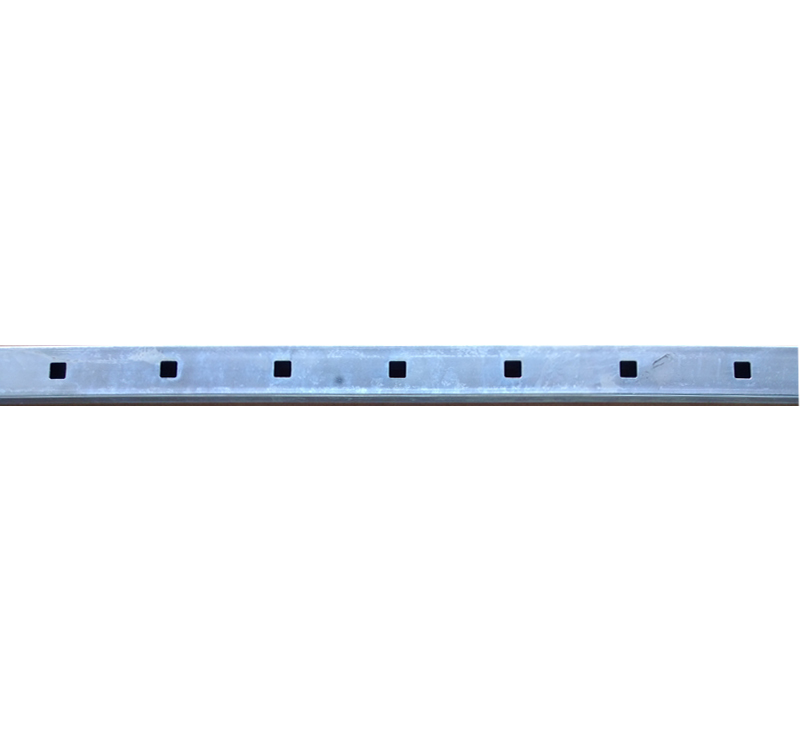

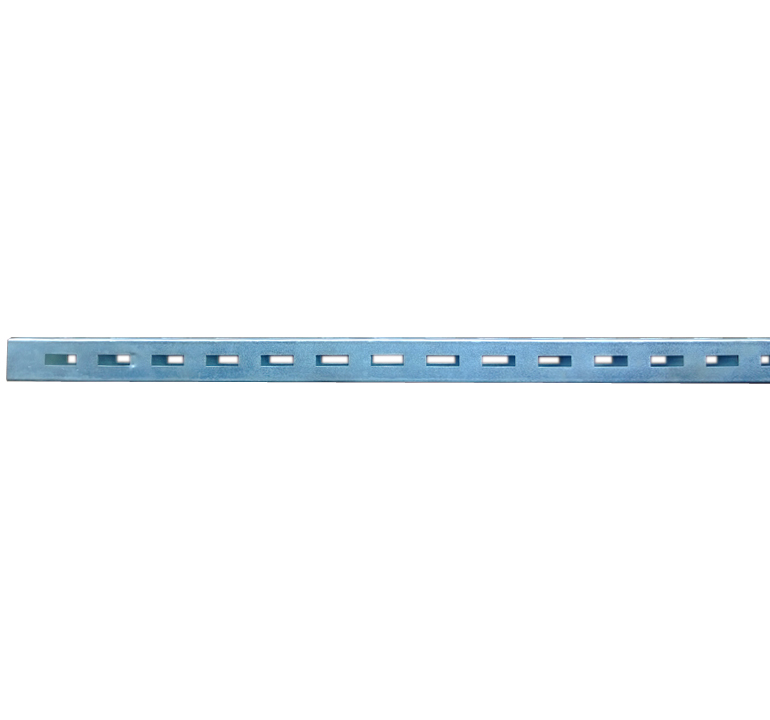

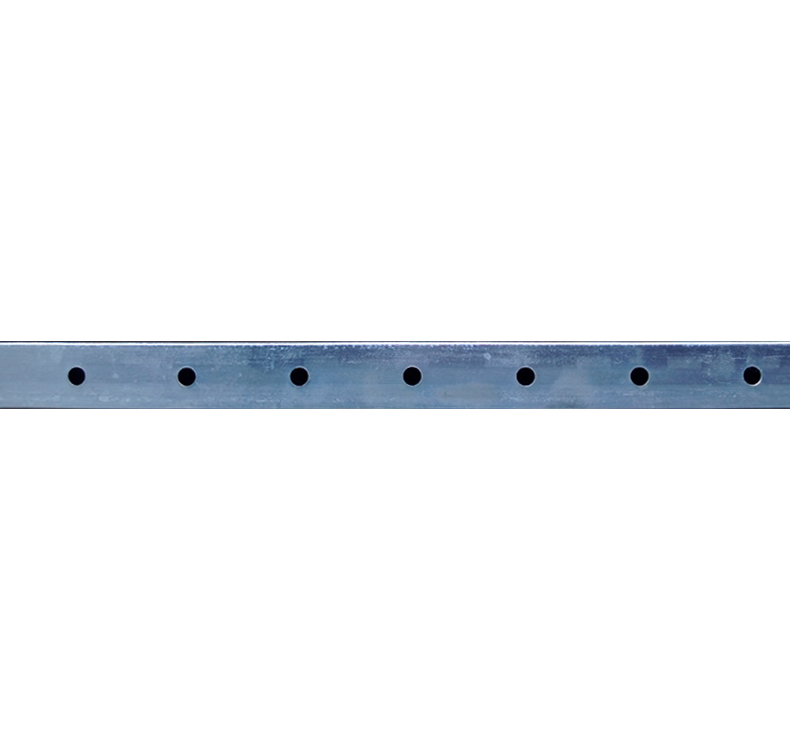

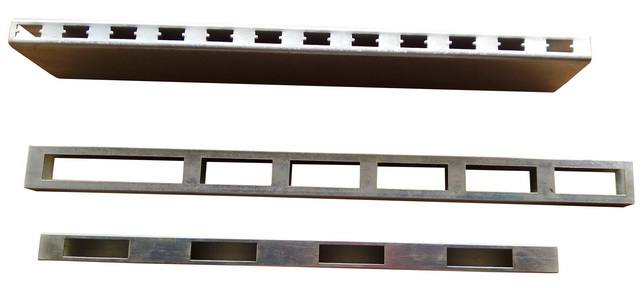

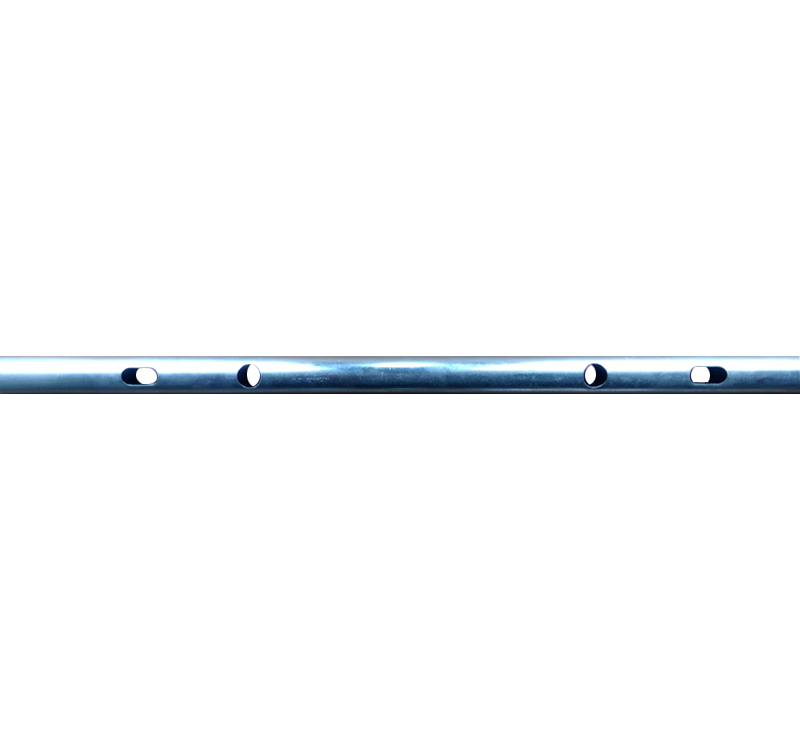

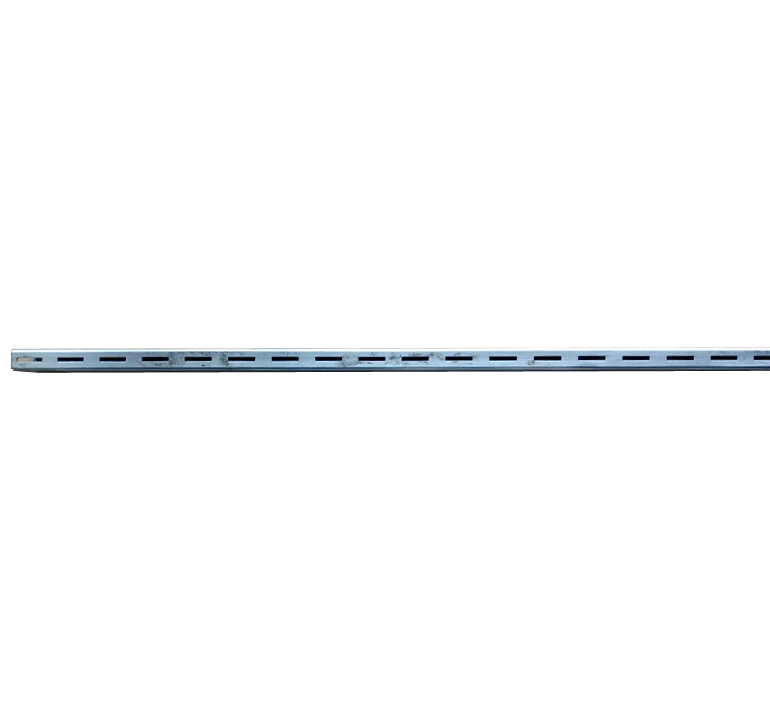

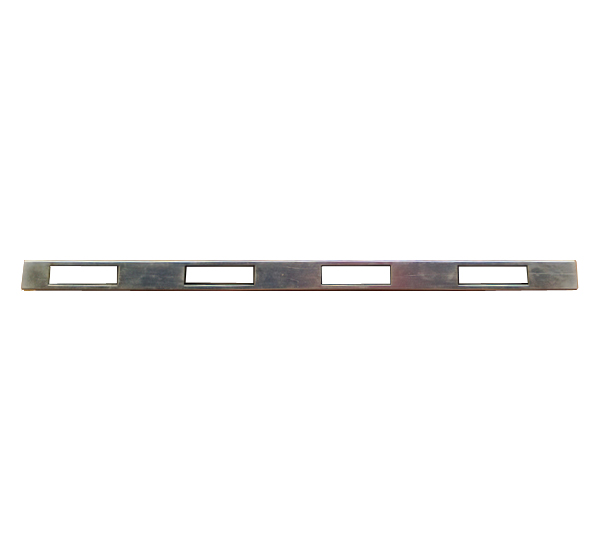

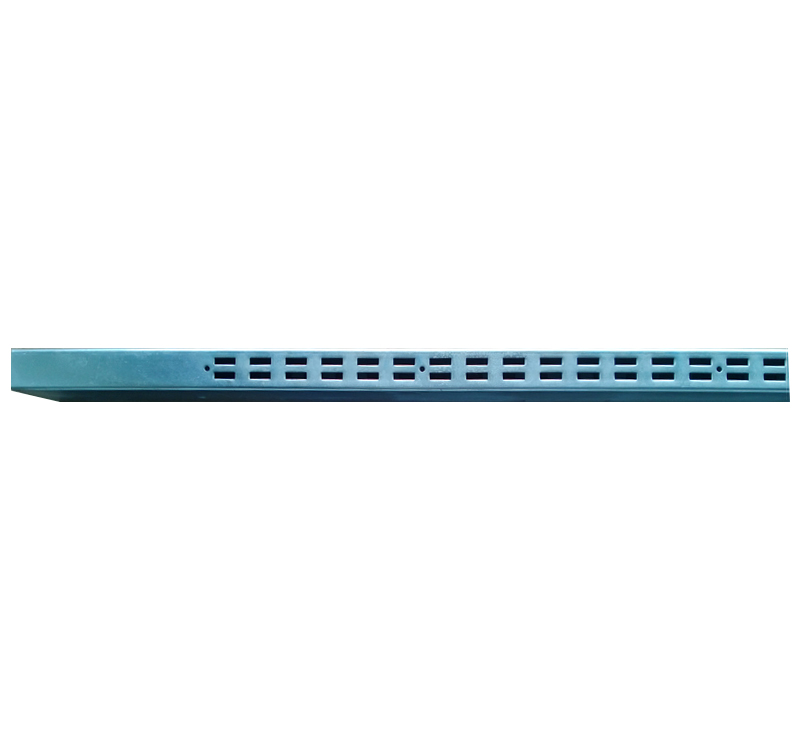

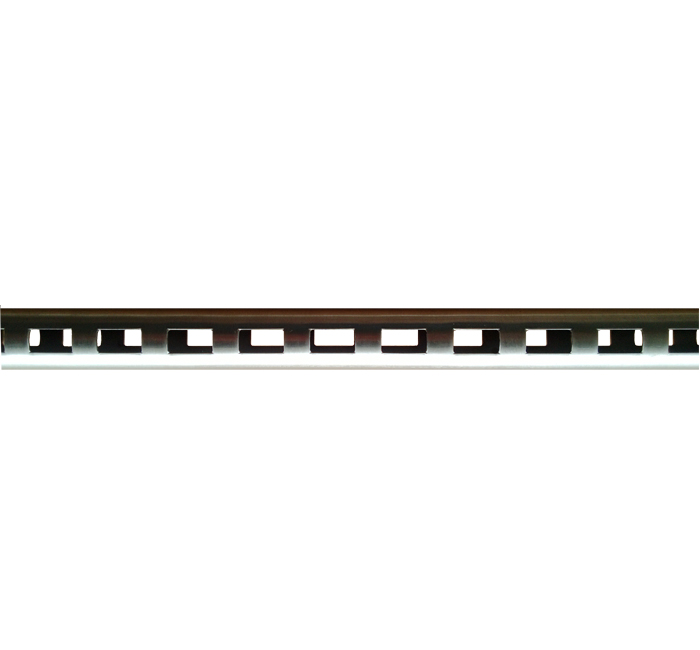

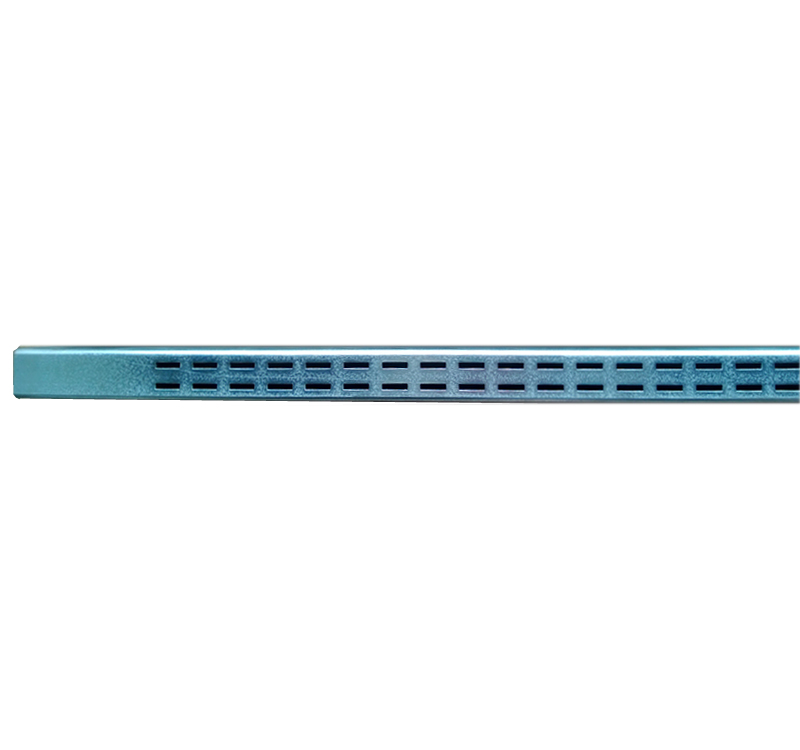

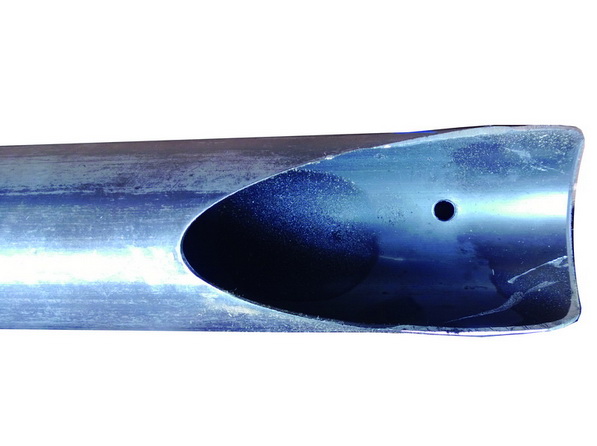

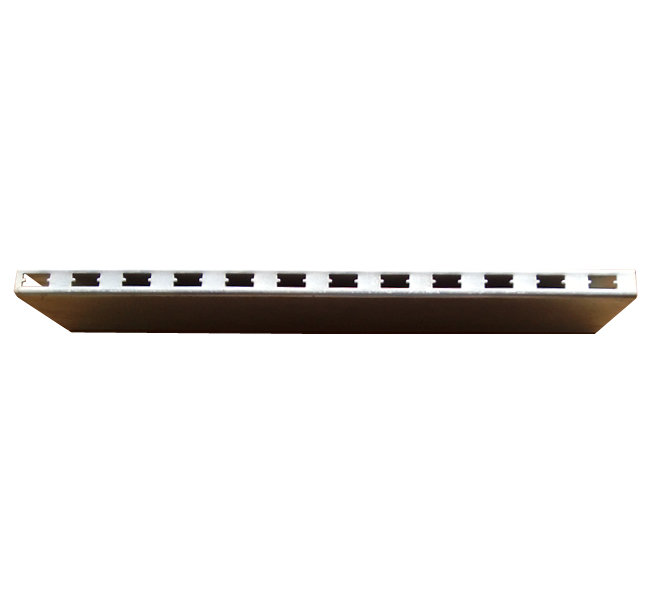

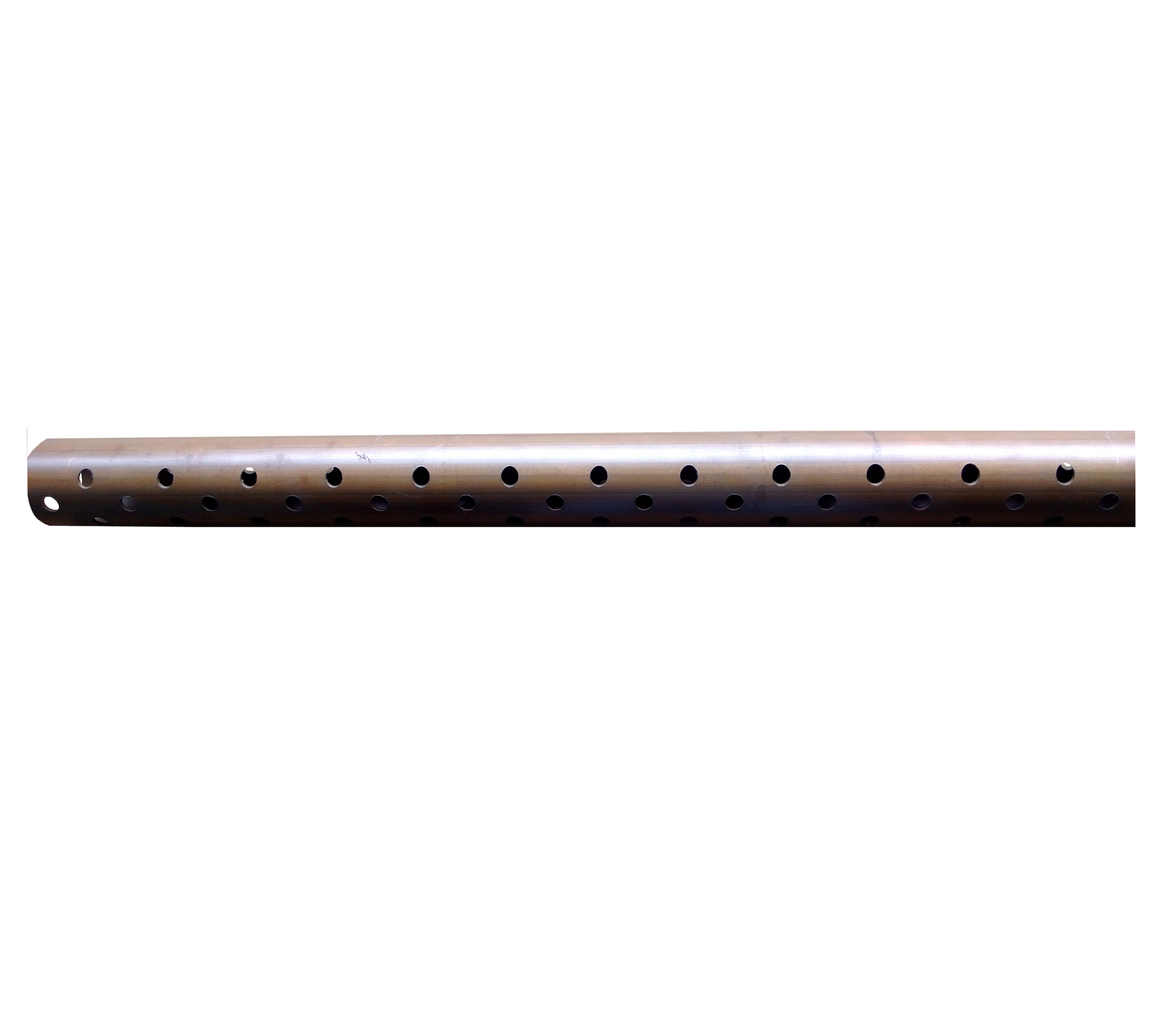

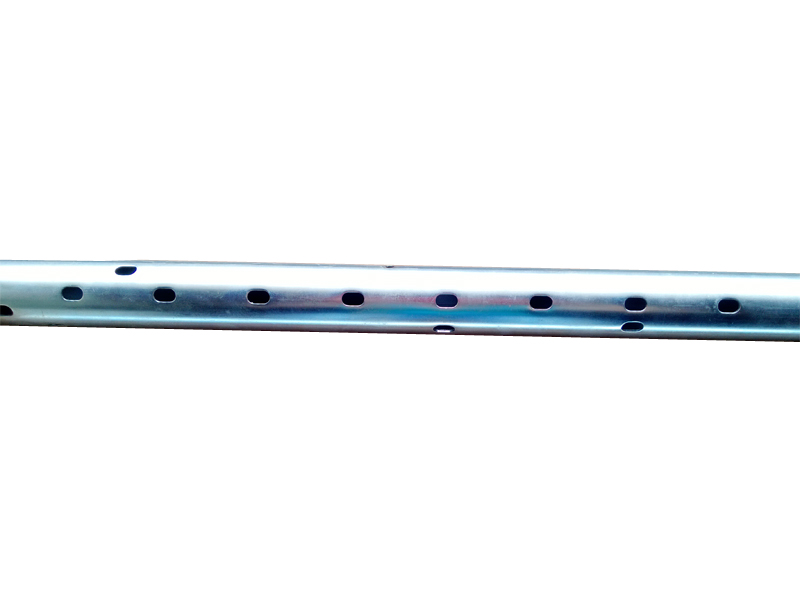

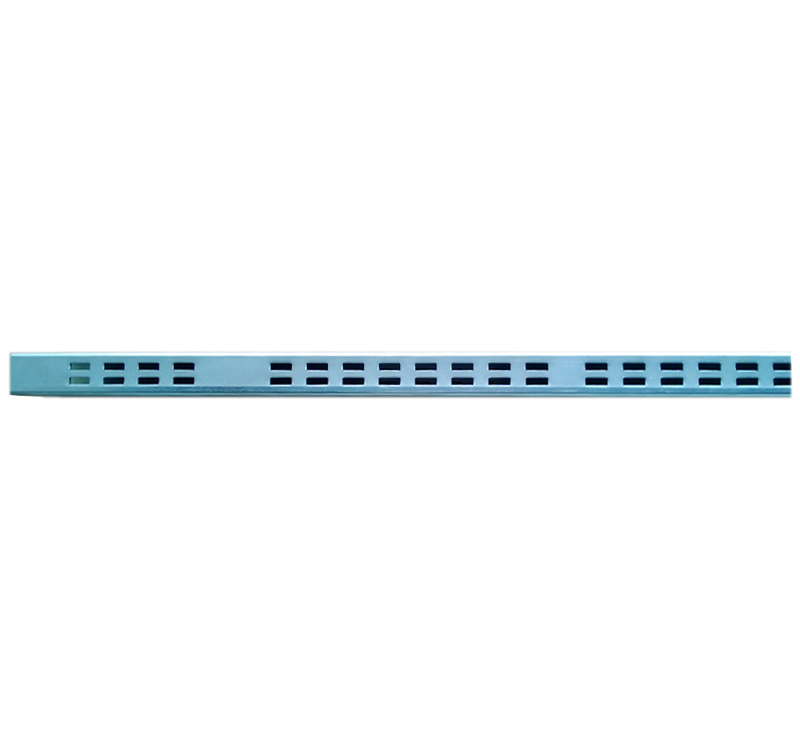

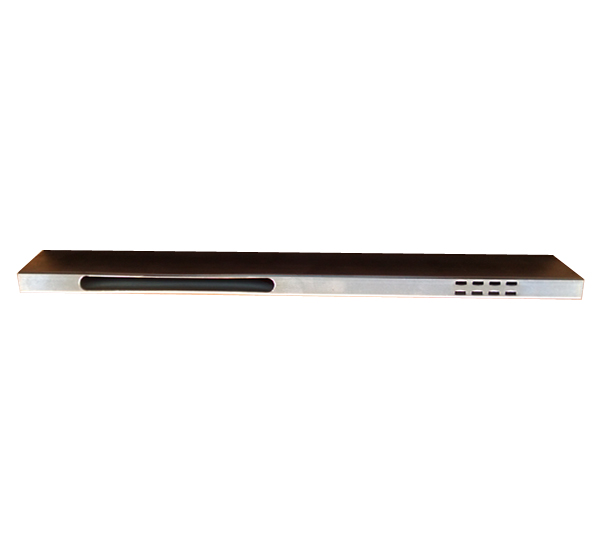

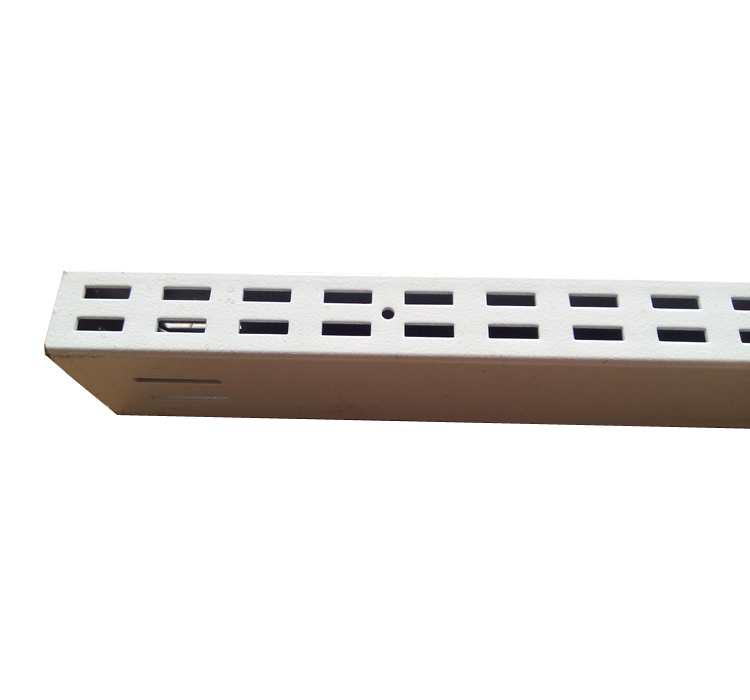

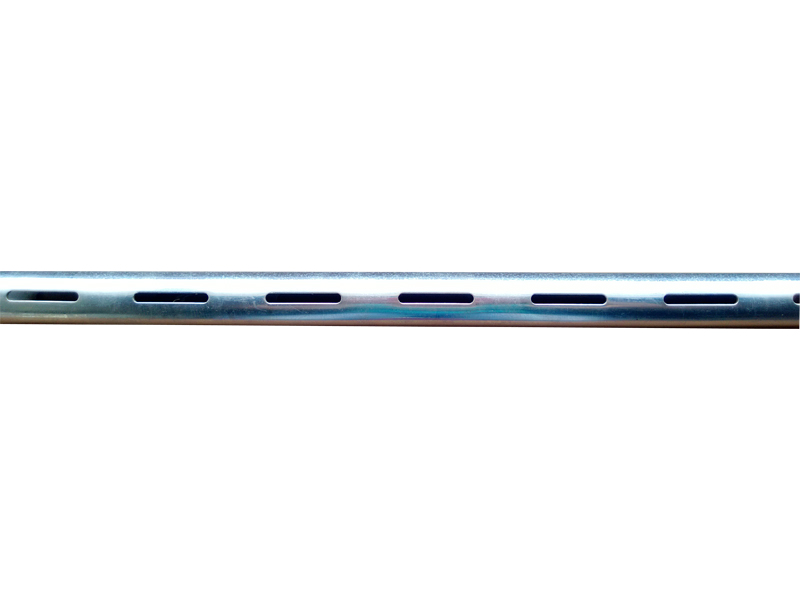

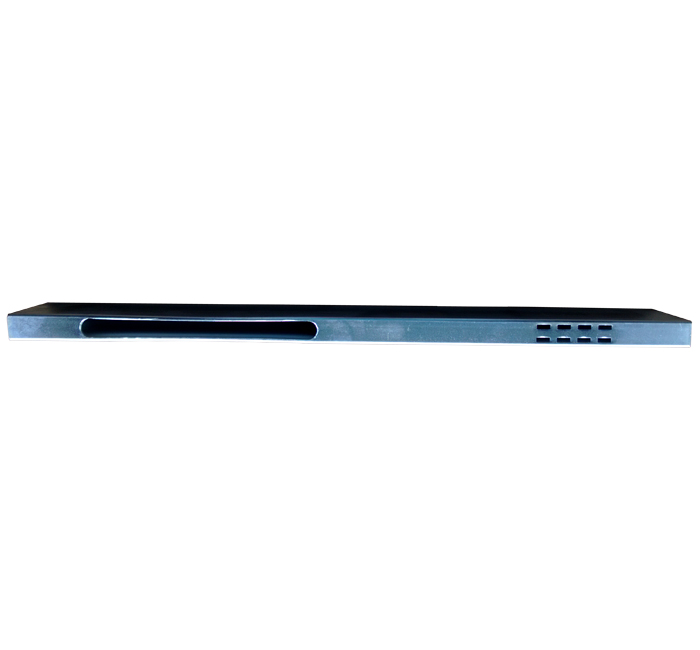

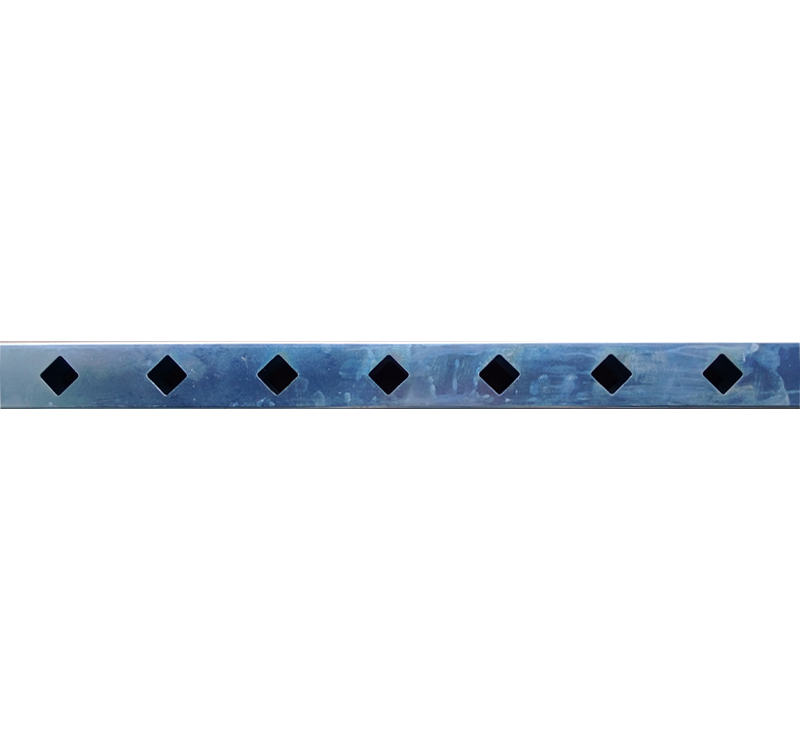

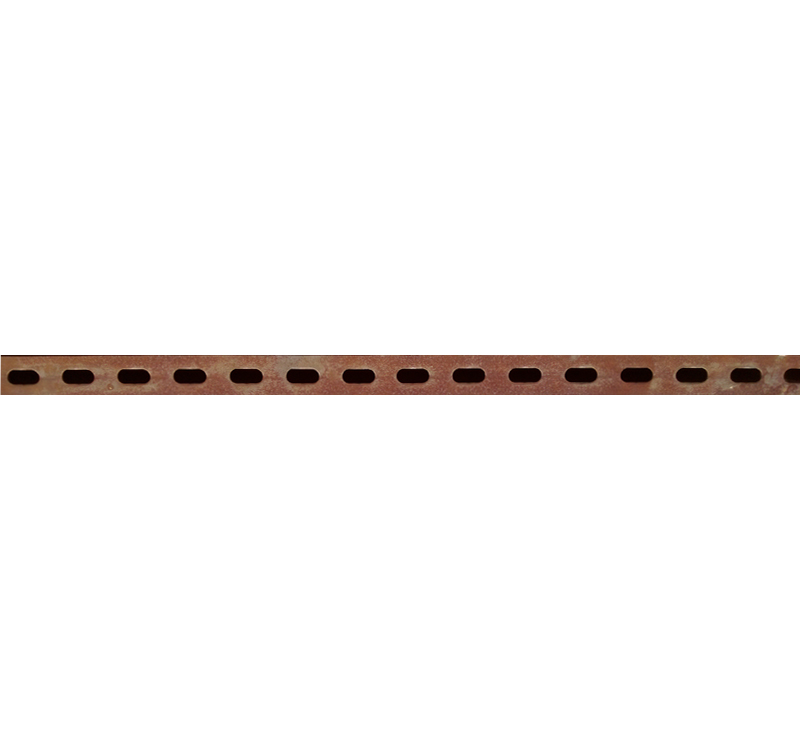

TBT offrece maquinas punzonadoras manuales, semi-automaticas y completamente automatizada con servo motores y controladores. Basados en las necesidades del cliente nosortos diseñamos con un cilindro o doble cilindro hidraulico para el punzonado. Para especificaciones detalladas favor de contactarnos.
