| Drilling Machine - Semi Auto |
| MODELS |
TBT02-2D |
TBT02-3D |
| Machine type |
2D Double Head Drilling Machine |
3D Three Head Drilling Machine |
| SPECIFICATIONS |
|
|
| Spindle Motor |
2 HP |
1 HP |
| Hydraulic Motor |
1 HP(4P) |
1 HP |
| Hydraulic Drilling Speed |
1170 R.P.M |
3,000 R.P.M. (opt. Frequency inverted motor) |
| Max. Drilling Capacity |
35 mm(aluminium) |
∅16 mm with 3 mm depth |
| Max. Drilling Travel |
150 mm |
X-Axis: 3,500 mm (Opt. other length)
X-Axis Mini Drilling Length: 300 mm
Y-Axis Travel: 250 mm
Z-Axis Travel: 100 mm |
| Air Pressure |
4~6 kgs/cm2 |
x |
| Machine dimension(mm) |
1900 x 800 x 1750 |
5000 x 800 x 1500 |
| Drilling Machine - Fully Automatic |
| MODELS |
TBT02-NC150 |
| Machine type |
NC Automatic Drilling Machine |
| SPECIFICATIONS |
|
| Length |
3m, 4m, 5m, 6m(Optional) |
| Width |
250 mm (Optional) |
| Oil Pressure Drill Head Motor Horsepower |
2 HP Level 4(or 3 HP Level 2) |
| Oil Pressure Drill Head Rotation Rate |
3200 R.P.M. |
| Maximum Drill Capacity |
35 mm (Aluminum) |
| Maximum Drill Distance |
150 mm |
| Frequently Accessed Memory Set |
100 sets |
| Automatic Positioning |
X-axis 40M/Min |
| Automatic Positioning Precision |
±0.1 mm |
| Server Motor |
400 W |
| Touch Screen |
5.7" |

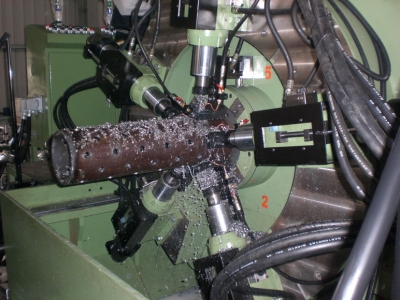

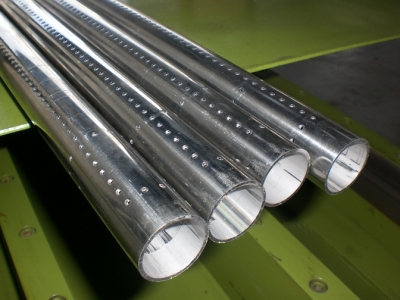

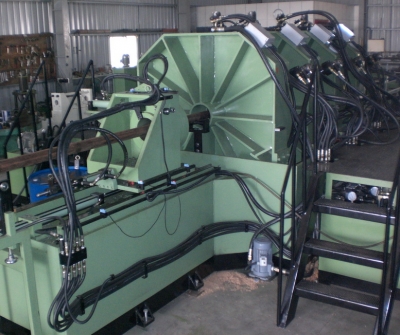

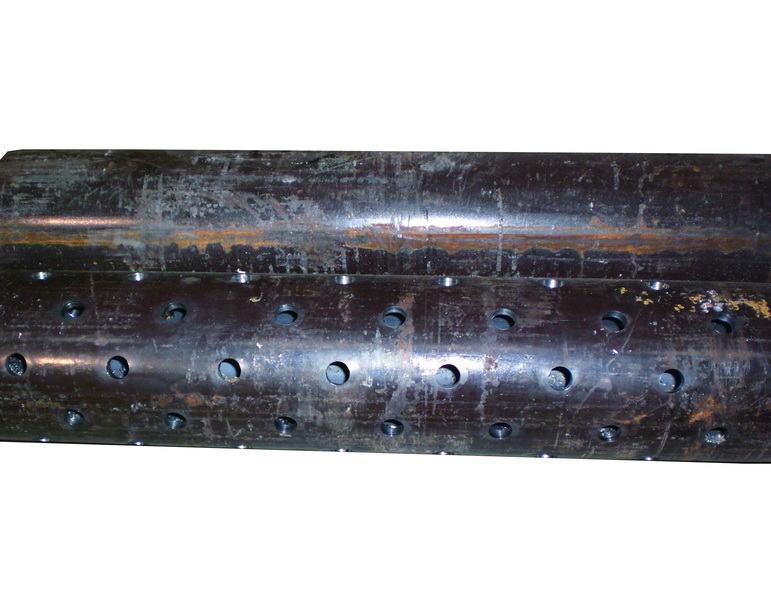

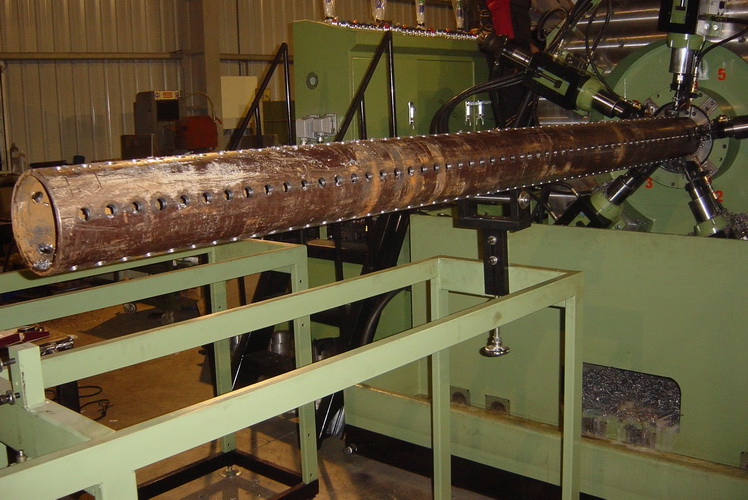

Estas Maquinas estan diseñadas para punzonar tubos largos y de gruezo calibre especialmente usados en la industria petrolera, pueden ser con 16,20 o mas posiciones de los ejes, dependiendo de las necesidades del cliente. Para mayos informacion favor de contactarnos
